Products /
Import door
Quick Saver GR-S
Advantages of products:
High speed, smooth operation
Orange curtain is not only see-through but insect prevention also
Opening and closing speed is 10 times faster than usual shutter.
Curtain's maximum size can be up to WxH = 6x5 m. Maximum opening speed is 1m/s, maximum closing speed is 0.5m/s
Open/close continuously in 60 cycles per hour
The support bone structure in curtain helps Quick Saver increase the wind pressure resisstance. Wind pressure resistance is 157 Pa.
Capacity: 0.75 KW
Electricity supply: 1PH.220V.50Hz
Suitable for large entrance and next-to outdoor area
Applications:
Electronic Component Factory
Food Factory
Medical Equipment Factory
Read more  >
Quick Saver S13 & S14
Advantages of products:
Small, compact design
Orange curtain is not only see-through but insect prevention also
Opening and closing speed is 10 times faster than usual shutter.
Maximum size and opening speed:
S13: WxH = 3x3m, Maximum opening speed is 2m/s, maximum closing speed is 0.8m/s.
S14: WxH = 4x4m, Maximum opening speed is 2.5m/s, maximum closing speed is 0.8m/s.
The curtain can be removed easily. Upon impact, the sheet dislocate from the guide rails, thereby absorbing impact force and minimizing damage.The dislocated part, if wound up, automatically reset into the guide rail tract.
Capacity: 0.75 KW (S14); 0.4KW (S13)
Electricity supply: 1PH.220V.50Hz
Suitable for External (S14) and indoor area.
Applications:
Electronic Component Factory
Food Factory
Medical Equipment Factory
Read more  >
Over slider shutter
Advantages of products:
Modern design.
Save space.
Convenient, beautiful appearance.
All hardwares follow Japanese standard.
Smooth automatic and manual operation without noise.
Applications:
Factory
Garage
Department store
Read more  >

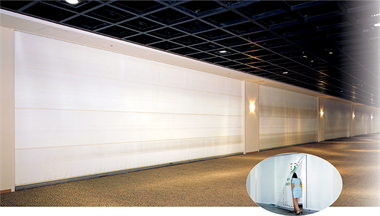

Fire-resistant and smoke-proof curtain Sansilica II.
Advantages of products:
Constructed from a fire-resistant fabric, with a thickness of 0.7mm and an ultra-lightweight design.
Can be neatly rolled up on the ceiling.
The maximum width of this product is 20m, and the maximum height is 6m.
The product can be used in wide passageways.
It has a 60-minute fire resistance capability.
There is a type that allows passage through the curtain.
Applications:
Airport
Hotel
Garage
Showroom
Subway station
Read more  >
Elegano Shutter
Advantages of products:
Modern and luxury design
Many variation of slat finishing (Metalic colors and wooden type finish design)
Multiple safety spot sensors system recognizes car to prevent collisions
Operated by electric
Can be operated from afar (optional function)
Speedy operation about 6m/min.
Applications:
Residence house
Store
Garage
Read more  >
Water & Flood Insulation Products
Advantages of products:
Modern design
Can stop water penetration
Can stop heavy rain and flood
Water guard and water proof shutter allows water flooding up to 2.5 meter (H)
Water proof board allows water flooding from 400mm - 1.500mm (H)
Operated by electric
Constructed with strong aluminium sheet.
Applications:
Subway station
Underground area
Garage
Hight rise bulding
Read more  >
Window Shutter
Advantages of products:
Resistant to rain and typhoon
Two types of operation: manual and automatic
Stop operation instantly when a person is stuck under (automatic operation mode)
Can adjust the angle of light
Maximum size can be up to WxH = 2x2.5 meter
Applications:
Residence house
Apartment
Luxury hotel
Read more  >
Sun Vision transparent shutter
Advantages of products:
Shutter curtain: First Grade UV protected Polycarbonate material that is air-tight, rust proof and clear transparency which show displayed products inside.
Color finishing: Standard color, according to customer's request
Guide rail: stainless steel hairline finish, durable and non-corrosion
Bottom bar: Aluminium with rubber strip or stainless steel without rubber strip
Operation: Manual and Automatic
Applications:
Showroom
Store
Garage
Read more  >
